149 Sullivan Street
Project Statistics
Project Name: Historic Sullivan Street Fire Escape Restoration
Location: New York, NY
Client: Residential Property Owner
Completion Date: 2023
Service Type: Fire Escape Repair & Restoration, Façade Restoration, Historic Preservation, FISP Consulting
Industry/Building Type Residential, Landmark Building, Historic District
Overview

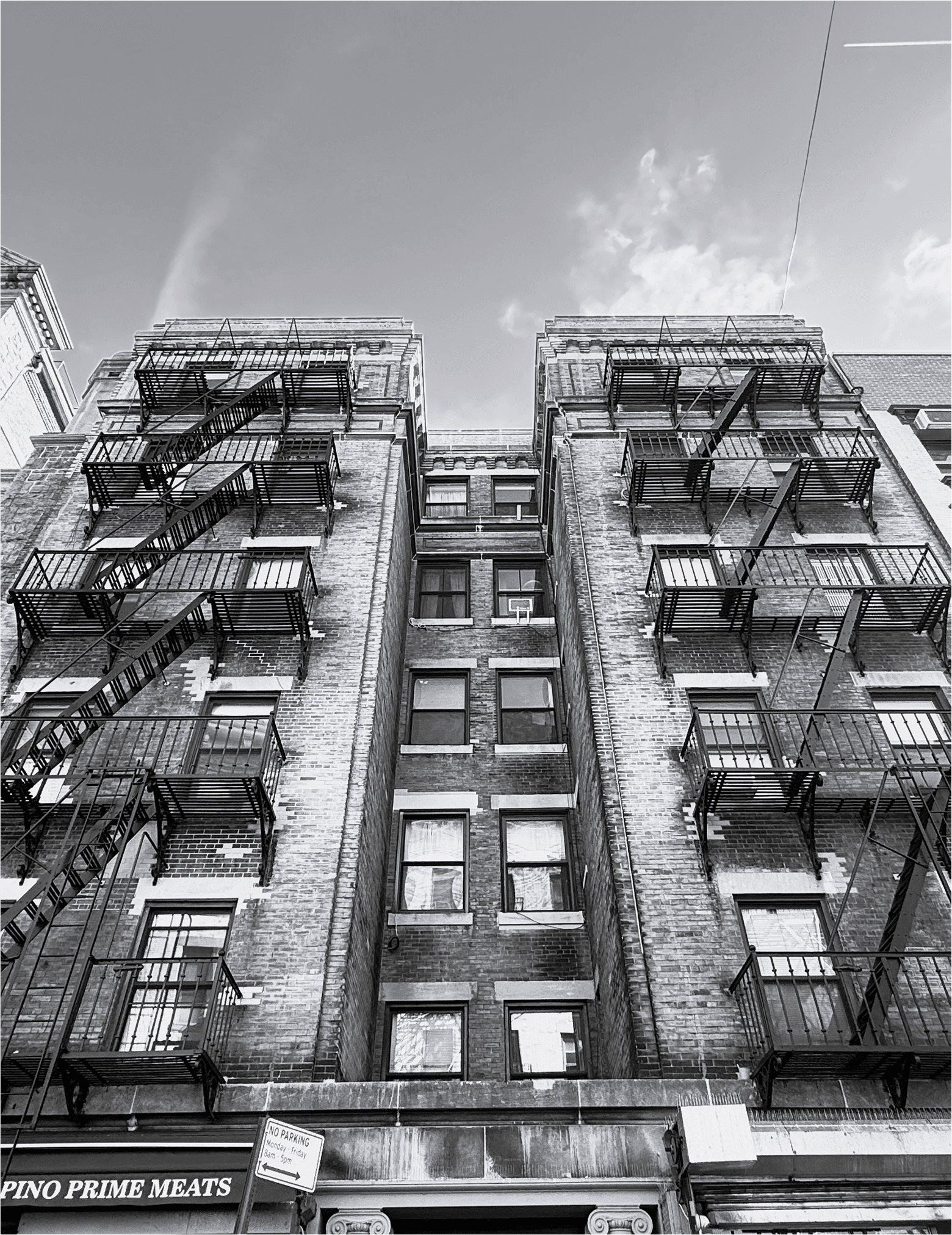

This project centered on restoring the deteriorating fire escapes at 149 Sullivan Street, a 1906 tenement building within the Sullivan-Thompson Historic District. Originally installed when larger buildings were converted to tenements in the early 20th century, these wrought iron and steel structures have become iconic symbols of New York City's architectural history. However, beneath layers of paint lurked serious structural issues threatening both safety and historical integrity.
The building sits in what was once one of NYC's most densely populated Italian neighborhoods from the 1890s until World War I. For over a century, Pino's Prime Meat Market, an Italian-owned butcher shop, operated at street level, contributing to the authentic character of the area. These fire escapes, now protected by the Landmarks Commission, represent both the practical building adaptations of the era and the aesthetic character that defines this historic district.
CANY's Involvement
Services provided
CANY took over this project in 2023 after the building had already been filed as UNSAFE under the Façade Inspection & Safety Program (FISP) by another architectural firm. We conducted comprehensive inspections, developed restoration plans that satisfied both safety requirements and historical preservation standards, and managed the approval process with multiple city agencies. Our team oversaw the complete restoration process from initial assessment through final inspection and FISP certification.
Scope of work
Comprehensive assessment of four fire escapes with focus on two in particularly poor condition
Development of restoration specifications to meet both safety codes and landmark preservation requirements
Coordination with regulatory agencies for approvals
Oversight of specialized contractors for lead paint removal and ironwork restoration
Documentation and certification for FISP compliance
Our approach and solutions provided
Main challenges
Accumulating violation fines requiring swift but thorough restoration
Discovering true conditions hidden beneath multiple generations of paint layers
Balancing modern safety requirements with historical preservation standards
Navigating approval processes with both the Landmarks Preservation Commission and Department of Buildings
Working on active fire escapes while maintaining building access and safety
CANY's solution
Implemented a phased approach to address the most critical safety concerns first
Engaged specialized contractors for proper lead paint removal to fully assess underlying conditions
Developed restoration techniques that preserved original character while enhancing structural integrity
Created an ongoing approval process allowing work to progress while submitting material samples and methodology mock-ups
Utilized protective netting and pipe scaffolding to support the structures during restoration
Project Achievements
Key outcomes
Restored structural integrity of all fire escapes
Successfully repaired treads, railings, supports, and façade connection points
Achieved FISP re-certification with SAFE status
Preserved the building's historic character and contribution to the Sullivan-Thompson Historic District
Created a restoration that enhances the longevity of these iconic architectural elements
Resolved outstanding violations and prevented further fines
Building History
149 Sullivan Street stands as a quintessential example of early 20th century tenement architecture in what was once known as New York's "Little Italy." Built in 1906, this structure emerged during a period of massive immigration when the neighborhood became home to one of the city's most vibrant Italian communities. The fire escapes that crisscross its façade weren't part of the original design but added as safety measures when larger residential buildings were converted to accommodate multiple families. This was a common practice as housing demands surged with waves of new arrivals.
The Sullivan-Thompson Historic District, officially designated in 2016, represents one of New York's most intact immigrant neighborhoods. From the 1890s until World War I, this area housed one of the highest concentrations of Italian residents in the city. The district's significance extends beyond its architecture to include its role in the immigrant experience and the development of ethnic enclaves that helped define New York's cultural landscape. The neighborhood is also home to St. Anthony of Padua, the first church in New York City built specifically for its Italian population. At street level, 149 Sullivan gained additional significance through Pino's Prime Meat Market, an Italian-owned butcher shop that operated for over a century, becoming a neighborhood institution.
While many view fire escapes as merely functional safety elements, they have evolved into essential components of New York City's architectural identity. These evocative metal structures have been immortalized in countless photographs, films, and works of art, becoming symbols of urban life. The Landmarks Preservation Commission now protects fire escapes, not just for their practical purpose, but for their contribution to the historic streetscape.
Conclusion
The structural integrity of 149 Sullivan Street has been fully restored, with the building re-certified as SAFE under FISP. The restoration of 149 Sullivan Street's fire escapes represents the careful preservation of both functional safety systems and culturally important architectural elements that tell the story of how New York's immigrant communities adapted and thrived.
